EPICON supplies high quality Pipe Fittings that are extensively used in Construction, Oil/Gas, Process, instrumentation and Infrastructure applications. All our products are available in various shape and size combinations that actually reduce the number of fittings required in your system, resulting in substantial savings for you.



Carbon Steel Butt Weld Fittings

ASTM: A234 WPB, A234 WP (1-22), A420 WPL 3 & 6, A860 WPHY (42-70)

Type: Seamless & Welded

Size: 1/2″ to 60″

Thickness: STD, 40 – 60 – XS -160 – XXS

Finish: Black or Galvanized

Stainless Steel Butt Weld Fittings

ASTM: A403-304/304L, 316/316L

Type: Seamless & Welded

Size: 1/2″ to 36″

Thickness: (

Forged Carbon Steel Fittings

ASTM: A105, A350LF1 to LF6

Size: 1/4″ to 6″ (NPT & SW)

Class: 3000#, 6000#, 9000#

Finish: Black or Galvanized

Forged Stainless Steel Fittings

ASTM: A182 – 304/304/L, 316/316L

Size: 1/4″ to 4″ (NPT & SW)

Class 3000#, 6000#, 9000#

Malleable Iron Fittings

ASTM: A197

Size: 1/4″ to 6″ (NPT & BSPT)

Class 150#, 300#

Finish Black or Galvanized

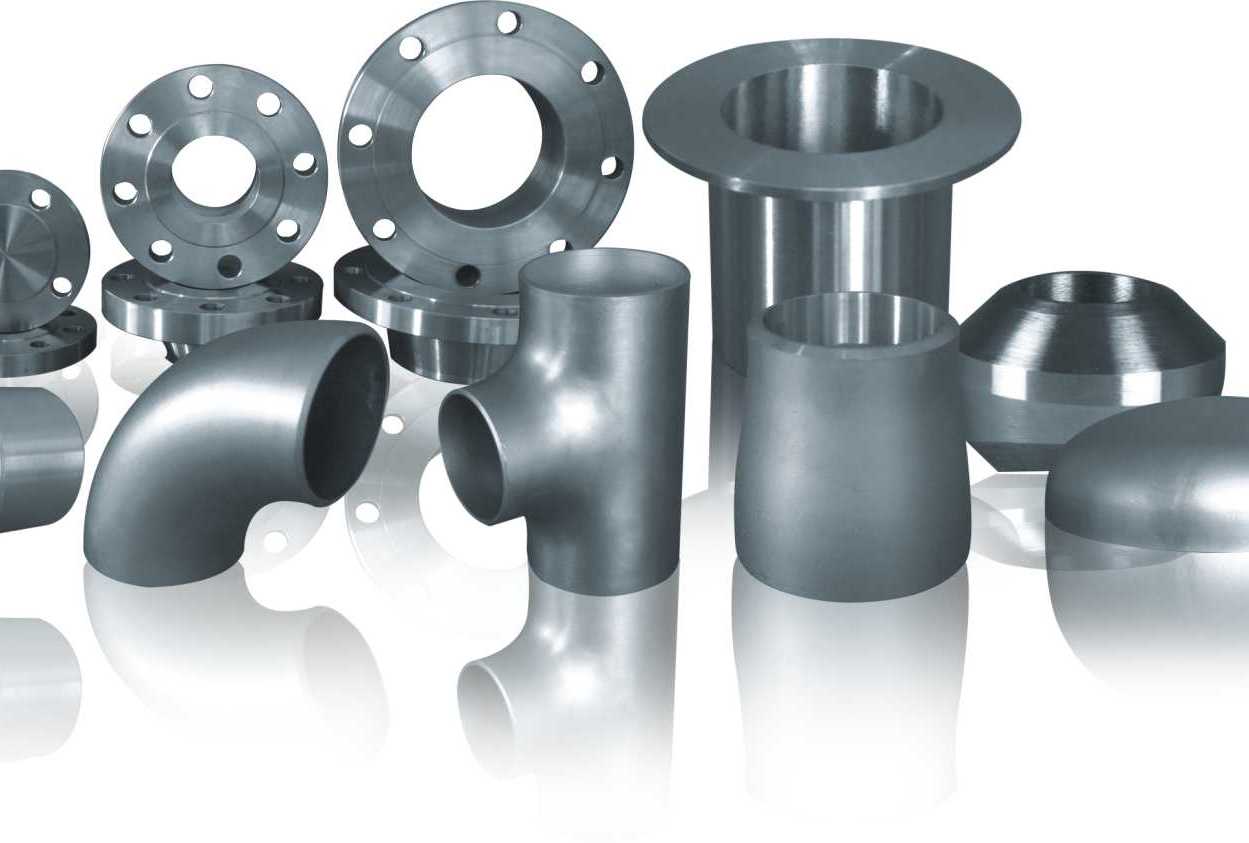

Flanges:

EPICON supply a wide range of flanges and gaskets all of which meet international quality standards. All products are dimensionally accurate and meet standard tolerance along with other necessary specifications.



Carbon Steel Flanges

ASTM: A105, A105N, A350LF2, A707

Type: Weld Neck, Slip-on, Socket Weld, Blind, Threaded & Lap joint

Size: 1/4″ to 24″ diameter , 26″ to 60″ (MSS SP44, API 605)

Thickness: STD, 40, XS, 80, 160, XXS

Class: 150# to 1500#

Finish: Black or Galvanized

Standard: ANSI, BS, DIN, AWA



Stainless Steel Flanges

ASTM: A182-304/304/L, 316/316L

Type: Weld Neck, Slip-on, Socket Weld, Blind, Threaded & Lap Joint

Size: 1/2″ to 24″

Thickness: 10, 40, STD, XS, 80, 160, XXS

Class: 150# to 1500#
